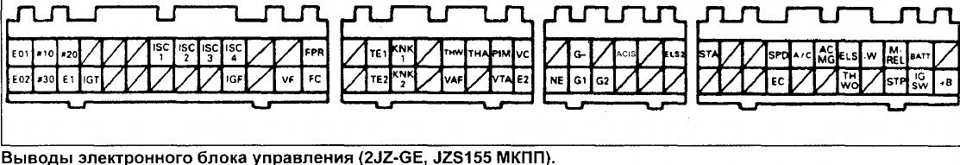

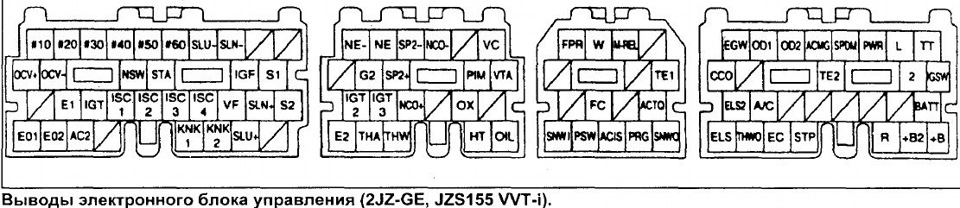

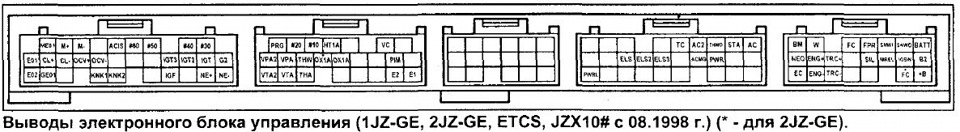

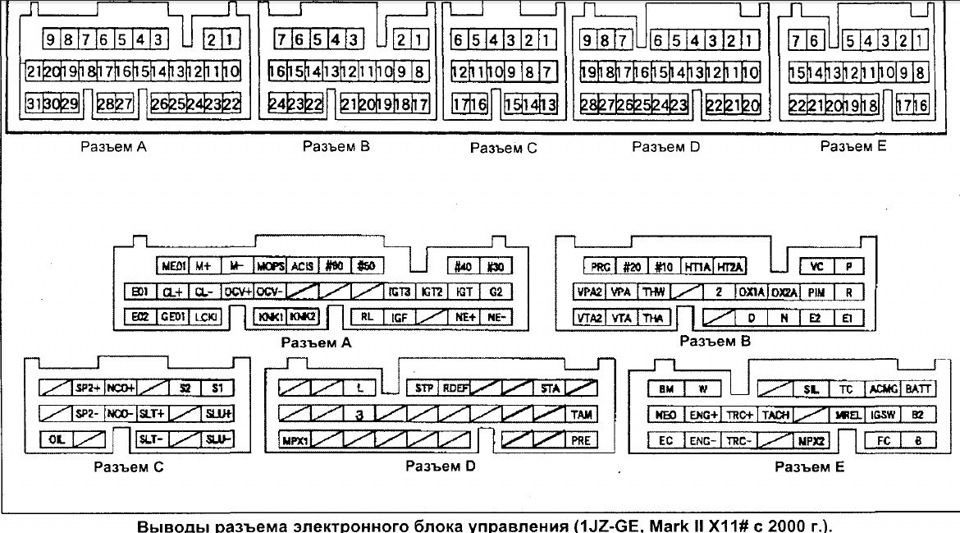

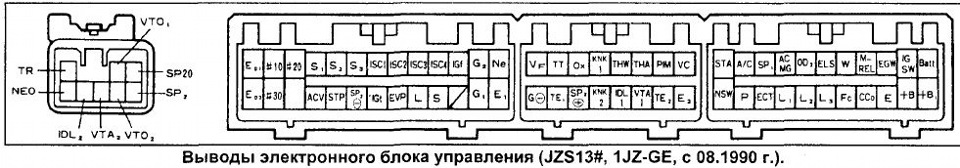

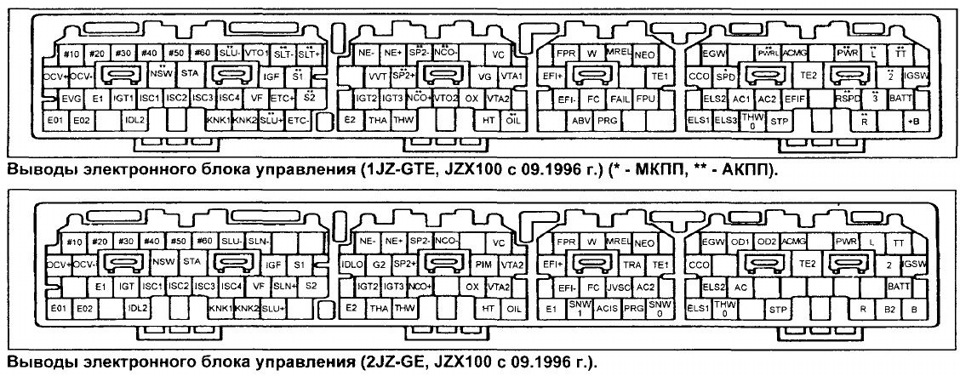

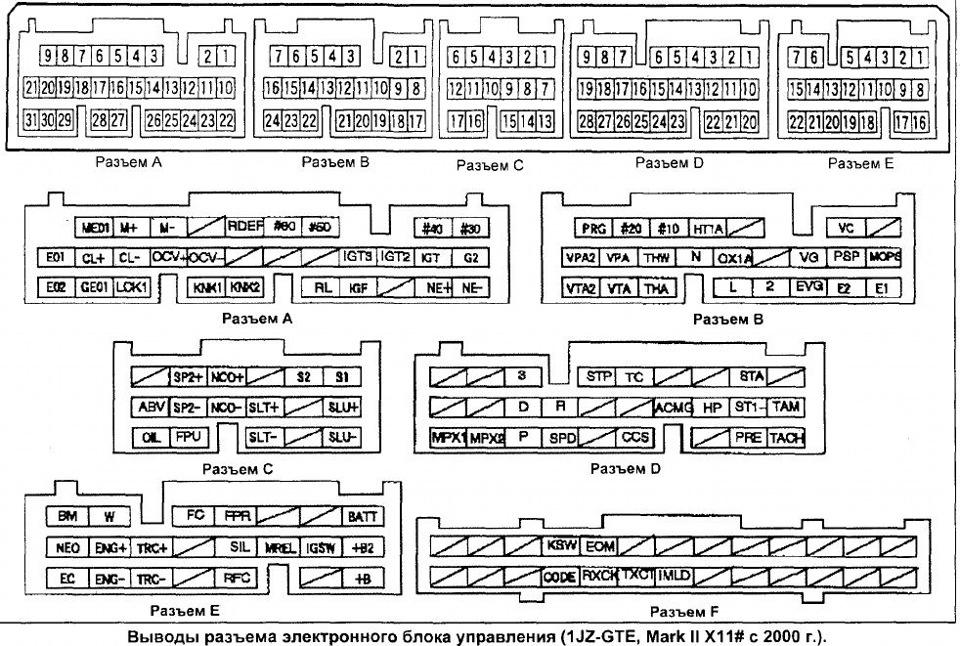

when I started looking for pinouts, I couldn't find anything useful. So, I decided to help everyone who needs it!)

In an audacious manner, for ease of viewing "compressed" by Solovushka

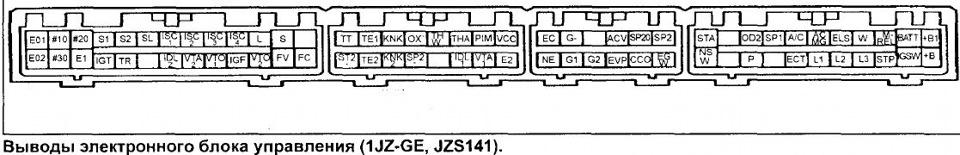

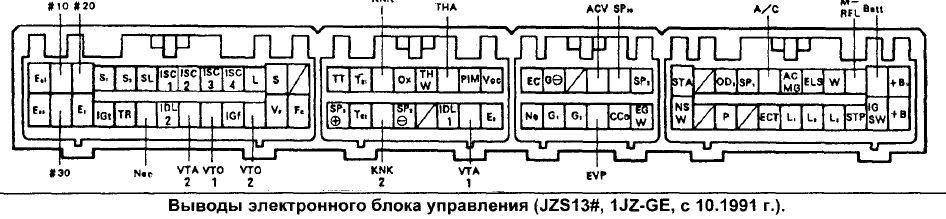

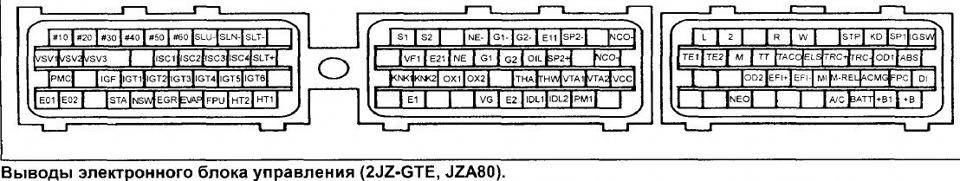

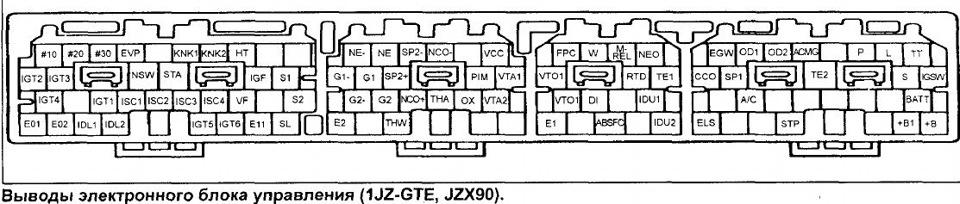

+V. Main relay
+V1. Main relay
2*. Position sensor for the transmission selector switch and start interlock
A/C. Power steering actuator
ACIS. Electropneumatic valve of the intake manifold geometry change system
ACMG. Relay of the electromagnetic clutch for the A/C
BATTERY. Battery
BSW. Brake switch
CATS. Exhaust gas temperature sensor
DI. Fuel pump control module
E01; E02. Power supply grounding
E1. Computer (ECU) grounding
E11. ECU grounding
E2. Sensor grounding
EC. ECU housing grounding
EGW. Exhaust gas temperature sensor
ELS. Rear light relay, rear window heater relay.
EVAP. Evaporative emissions control canister purge valve
FC. Fuel pump relay
FPC. Fuel pump control module
G-; G1; G2. Distributor
IDL; IDL1. Throttle position sensor
IDL2. Additional throttle position sensor
IGF. Commutator
IGSW. Ignition switch
IGT. Commutator
ISC1; ISC2; ISC3; ISC4. Idle speed control valve
KD. Kickdown switch
KNK1. Knock sensor #1
KNK2. ************************ #2
L*. Position sensor for the transmission selector switch and start interlock
P-. Transmission mode select switch
MI. Manual shift indicator
M-REL. Main injection system relay (coil)
NCO-. Speed sensor —
NC2-. -clutch engagement-
NC2+. -overdrive gear
NE. Distribution Panel
NEO. Electronic Control Unit (ECU) for TRC system
NSW*. Start Disable Switch
№10.F
№20.o
№30.r
№40.s
№50.u
№60.nki
OD1*. Computer (ECU) of the Speed Hold System
OD2*. Main Overdrive Relay
OIL. Transmission Fluid Temperature Sensor
ОХ. Oxygen Sensor
ОХ1. Main Oxygen Sensor
ОХ2. Additional Oxygen Sensor
Р. Gear Shift Position Sensor and Start Disable Switch
PIM. Intake Manifold Absolute Pressure (MAP) Sensor
PS. Power Steering System Pressure Switch
R. Automatic Transmission Selector Lever Position Sensor, Start Disable Switch
S1*. Electromagnetic
S2*. valve
S3*. Automatic Transmission (AT)
SLN-. Electro-Magnetic Valve of AT No.4
SLT(-).Electromagnetic Component
SLT(+). Electronic Control Unit for AT
SLU-.Electromagnetic Valve of the ECU for AT (No.3)
SP1. Speed Sensor No.1
SP2-. Speed Sensor No.2
SP2+.Speed Sensor No.2
STA. Starter Switch
STP. Hazard Warning Light Switch
ТЕ1. Diagnostic
ТЕ2. connector
ТНА. Intake Air Temperature Sensor
THW. Coolant Temperature Sensor
ТТ*. Diagnostic Connector
VAF. Variable Resistor
VC. Throttle Position Sensor, Variable Resistor
VCC. Throttle Position Sensor / MAP Sensor
VF;VF1;VF2. Diagnostic Connector
VTA;VTA1. Throttle Position Sensor
VTA2. Additional Throttle Position Sensor
VTO1. ?
VTO2. ?
W. CHECK Warning Lamp

note: models with electronic control of automatic transmission are marked with *.

Wire Color Codes:
B-black
O-orange
BR-brown
P-pink
G-green
R-red
GR-gray
V-purple
L-blue
W-white
LG-light green
Y-yellow

The first letter denotes the main color, and the second letter indicates the stripe color.

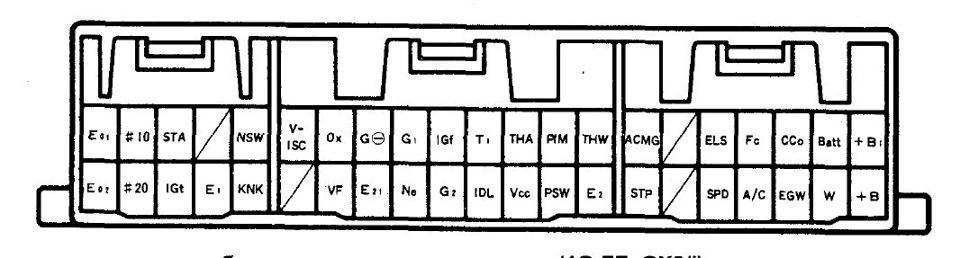

1g-fe gx81

PS if anything is missing, please contact me! I will try to help!
