Unfortunately, it's not easy to find the part numbers of our car rear suspension silent blocks in catalogs.

Firstly, the Toyota Cressida models X3-X4 with independent suspension were almost never exported; secondly, for the model with dependent suspension (with a rear axle), separate silent bushes for longitudinal links are not supplied – only complete links.

However, there is an option - to consider independent suspensions from later body styles, and for the axle to do a size match. I hope the logic is clear, and now let's move on to the suggested replacement options.

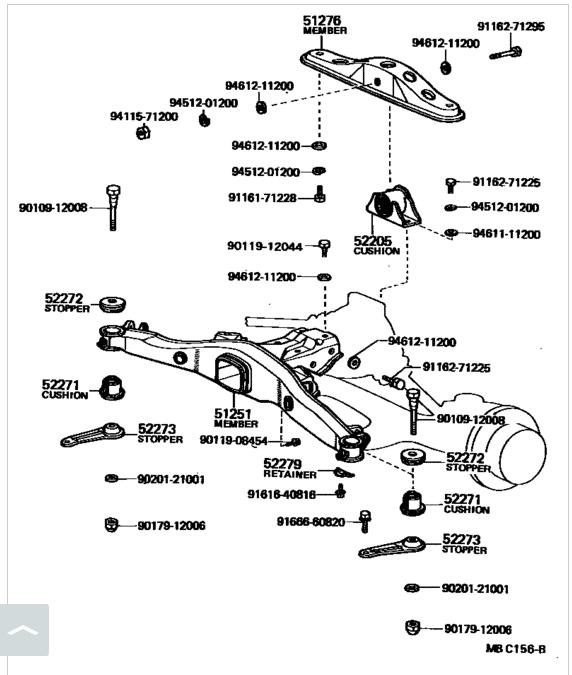

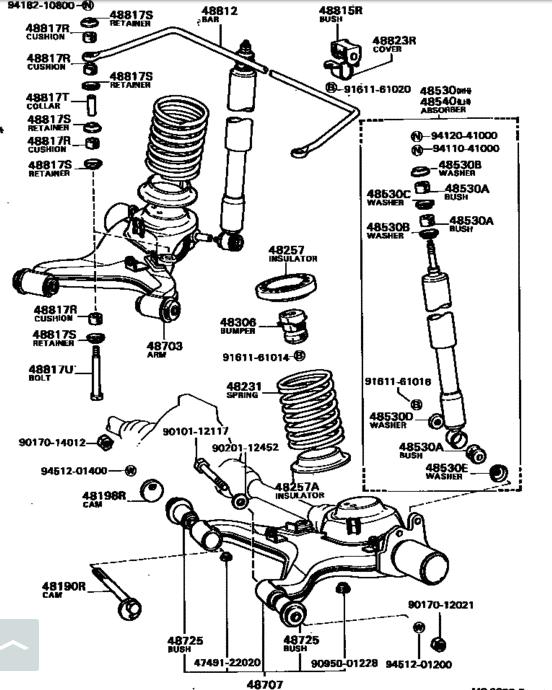

Independent rear suspension.

Components of independent rear suspension:

- external swing arm bush 48725-22030 (2 required)

- internal swing arm bush 48725-22040 (2 required)

- transverse beam bush 52271-22031 (2 required)

- differential bush 52205-22020

- stabilizer bar bracket bush 48815-14050 (2 required)

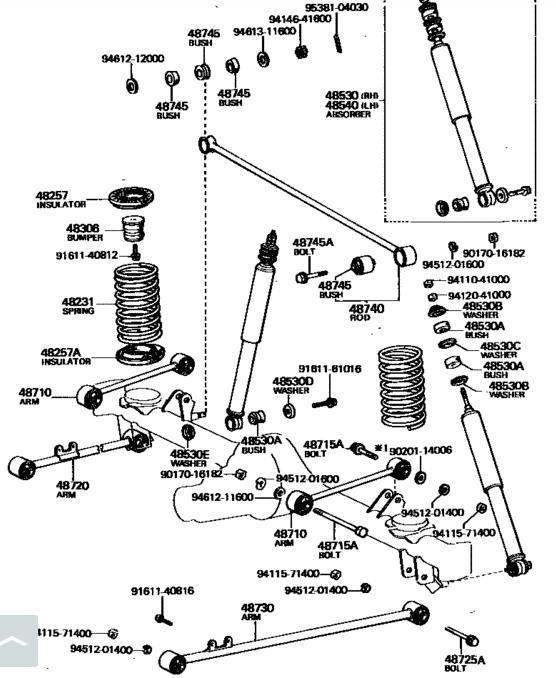

Dependent rear suspension (axle).

mComponents of dependent (axle) rear suspension:

Transverse link silent bush 48706-26020

Inner transverse link bushing 90386-20001

Outer transverse link bushing 90385-20001 (2 required)

Short link bushes MR 112711 (2 required)

Short link bushes 48702-14020 (2 required)

Long link bushes 48704-28010 (4 required)

The MR bush may need to be slightly trimmed after installation.

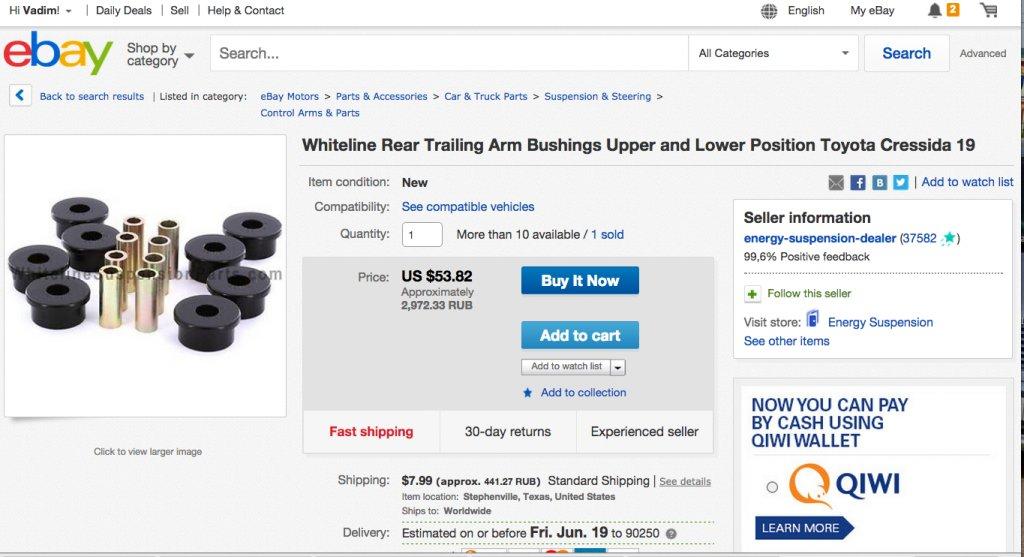

Another option for longitudinal stabilizers of the axle is a kit of dismountable polyurethane bushes, produced by WhiteLine.
