Author: RolandG

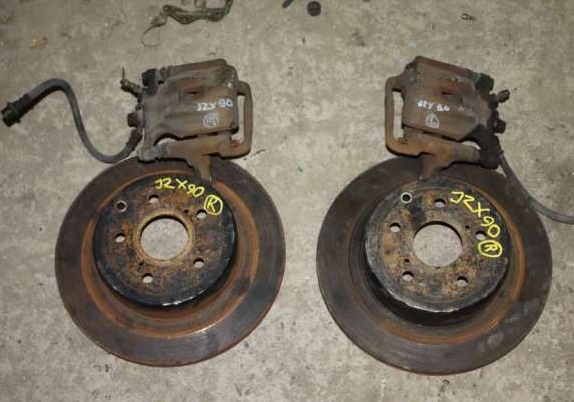

Rear brakes from Tourer V JZX90:

JZX90 Tourer V Rear Brakes

The support bolts-on to the hub. I had them with original pads, brackets and hoses: boot intact, pistons move by hand, guide and its boots — in order except for the lower left one — with a torn boot.
Cleaned up the old guide, polished it, oiled it. And ordered a new guide and a boot for it.
Copper Grease cleaned and oiled anti-squeak plates on pads.

Brake rotor fits by nipple, by handbrake diameter, except that you need to center-mount a 1mm thick ring over the hub (our hub is 60.1 mm, while Tourer V’s — 62 mm).

PS: Had to cut and bend the cover-boot like a daisy wheel. Some say if you get a whole hub from Tourer V, you can mount it entirely.

Attached hoses with original band-joist bolts with new copper washers, bled brakes. Here's happiness.

PPS: These brakes fit at least R16 discs, but more on that later.
