Mirror Control Unit

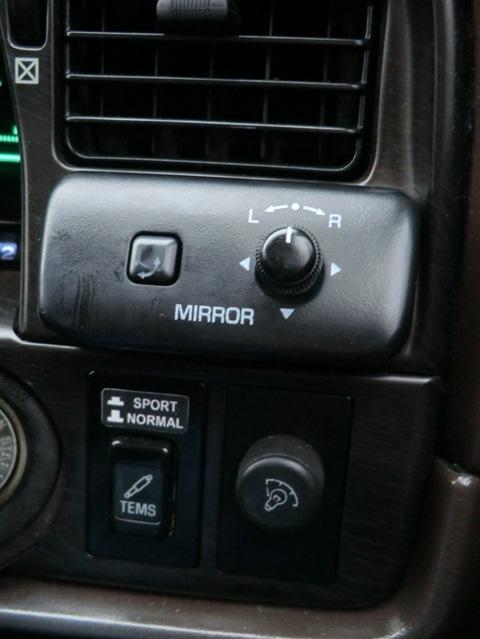

Do all remember my sticker on the mirror control unit (MCU)?

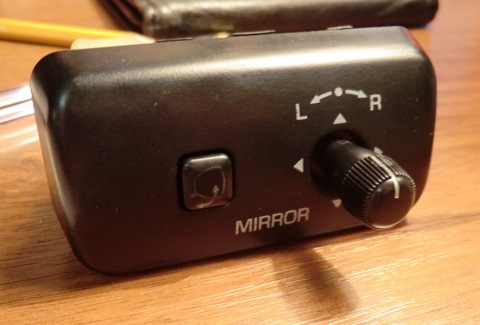

pre-restyling MCU

now it will stay with me as a memento among scrap parts.

I decided to change the block for one reason — the "dashboard" I installed turned out to be restyled, which I found out when the emergency light and radio control panel didn't fit. Then I was surprised that the MCU seemed to fit but was loose (not right!), so I understood it should also be a restyled one…

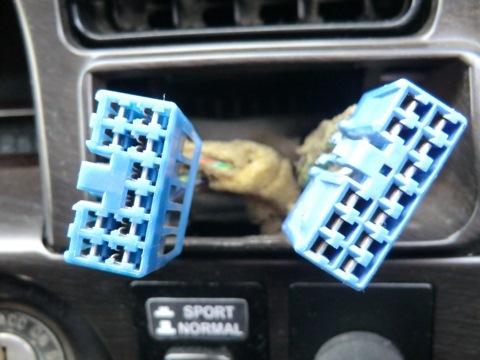

I didn't actively search for the block but inquired about it with friends,Al-exesent me to ask cod12. During the process, it turned out that the connectors on the blocks are different, meaning I needed a block with the right connector, and Mikhail got one for me!
At first glance, there didn't seem to be many problems…

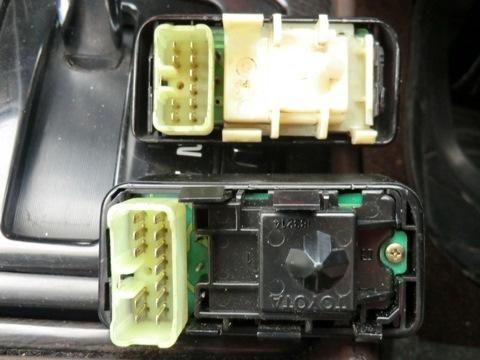

pre-restyling — restyling

blocks are completely different

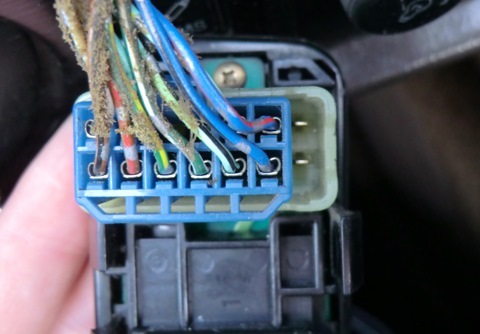

I tried inserting my connector into the new block…

it locks in place

2 contacts free

it doesn't work!

I didn't cut anything; that's not my style — only soldering. What to solder? Adapter! But for that, you need schematics, which aren't available properly. I decided to connect by wire colors — it didn't work!

detailed summary

tests

good idea?

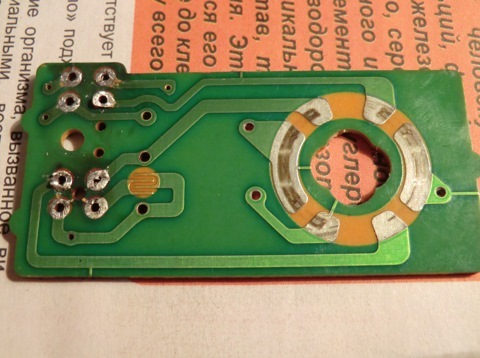

Let the brain rest… and started reading the circuit boards (anyone ever done this?)!

reading circuit boards!

As expected, only 8 contacts are in use during operation

replaces all connection schematics!

Everything is assembled properly; I didn't even bother to test — I was 100% confident.

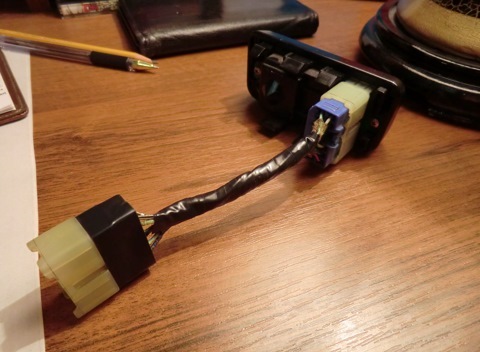

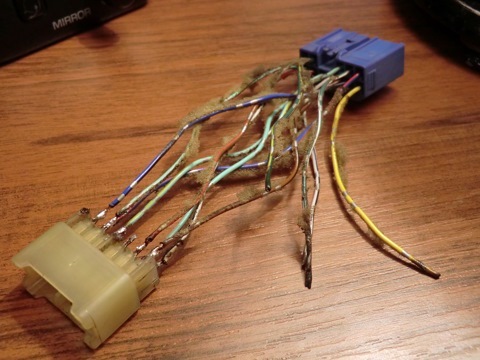

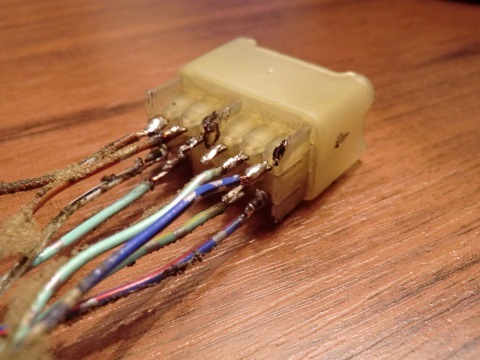

adapter

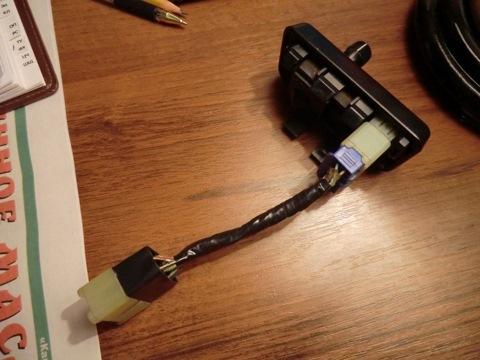

looks like this

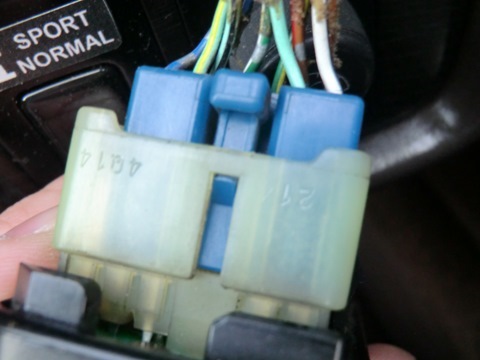

Connected it — everything works perfectly!)))

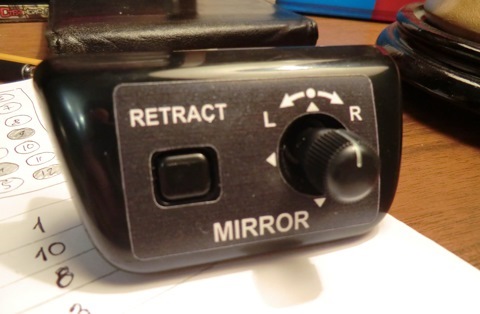

restyling

Cost: 1,000 rubles
