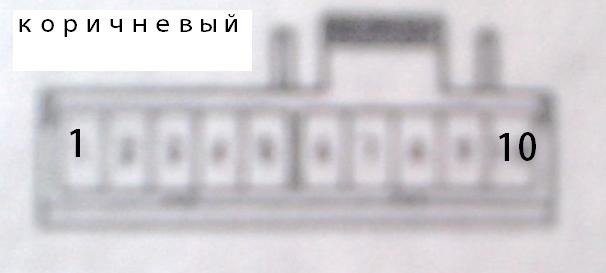

1. Green/Black left turn 2. Green/Yellow right turn 3. . 4. White/Black minus 5. . 6. Red/Blue high beam 7. Yellow charging lamp 8. 9. . 10. Black tachometer (without TRC)

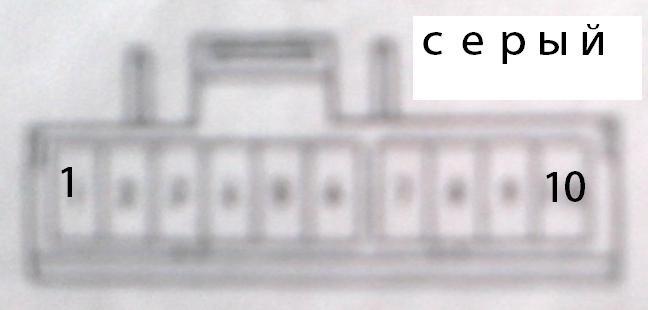

1. . 2. Violet/Green OD OFF 3. . 4. Green P 5. Red/Blue R 6. Light Green 2 7. Pink L 8. Red N 9. Blue D 10. White/Black minus

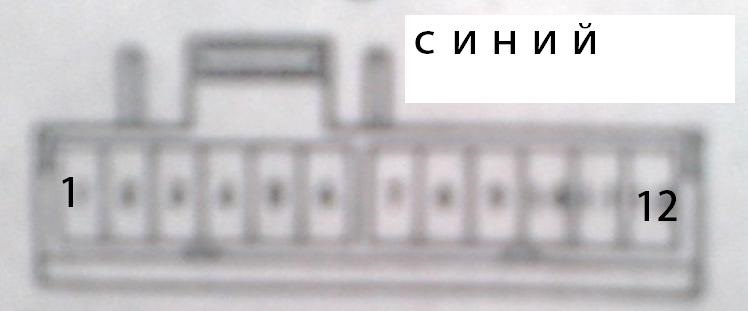

1. Black tachometer (with TRC) 2. Black/Yellow A/D lamp (cruise control) 3. Yellow/Blue oil pressure 4. Black/White handbrake, brake fluid level 5. Black/Orange +IGNITION (7.5a fuse) 6. Yellow/Black catalytic converter overheat 7. Yellow/Red check engine 8. Violet/Green tail light malfunction lamp 9. Light green presence of water in fuel filter (diesel) 10. . 11. Beige minus 12. Yellow coolant temperature

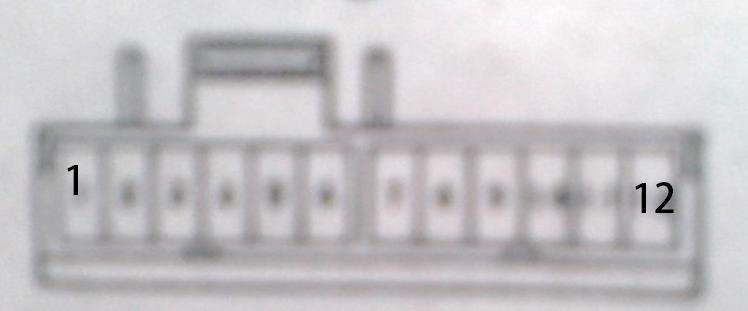

1. Yellow/Red +GAUGE (7.5a fuse) 2. Yellow/Green fuel level 3. . 4. Light Green/Pink speed sensor to ECU etc. 5. Yellow/Blue low fuel lamp 6. Blue/Pink Manu 7. Red/White ESC (ABS) 8. . 9. . 10. Blue/White PWR

Check all wires, I might have made a mistake somewhere, there are typos in the book too!
one connector photo doesn't match. check by wire colors. all beige and black/white wires are ground
