It is recommended to perform cleaning every 30,000 km. Before the procedure, it is advisable to remove the battery cable to reset the adaptations and everything started up well after that.

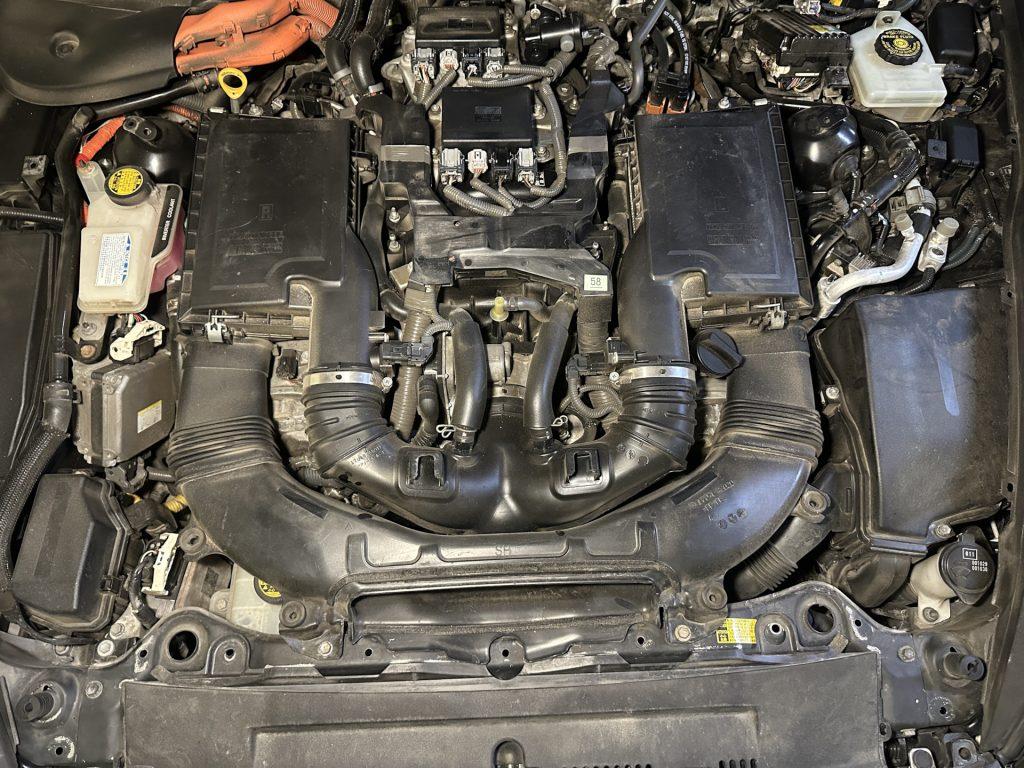

Disassembly is simple, decorative covers are removed

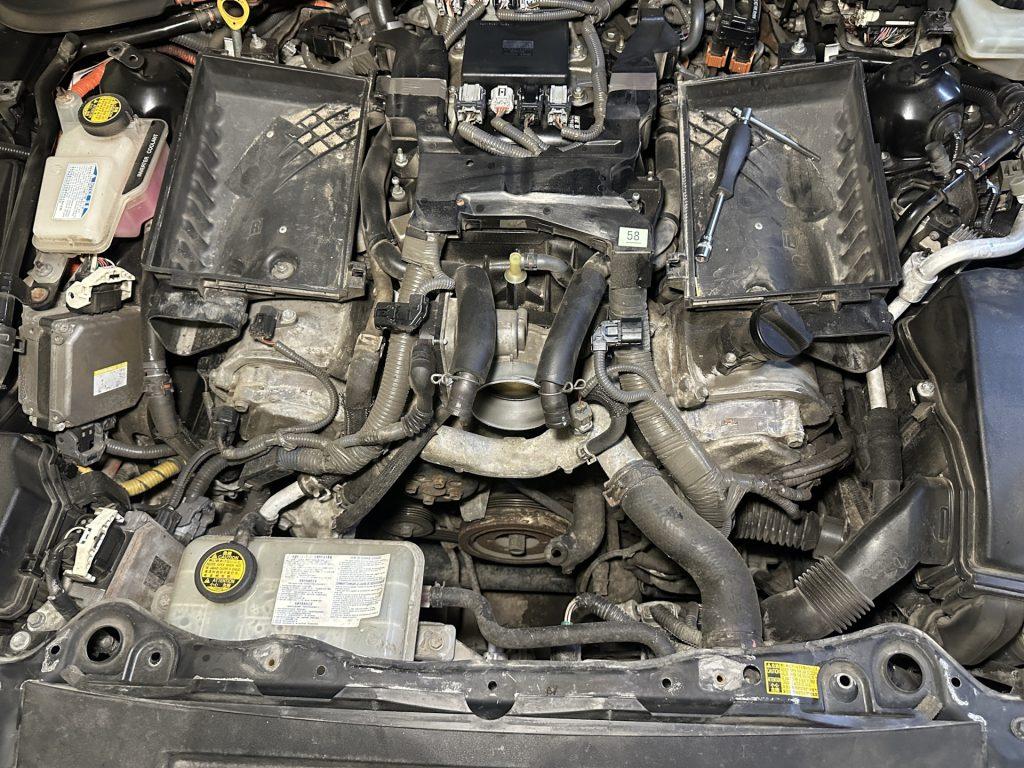

Then the intake hoses are disconnected

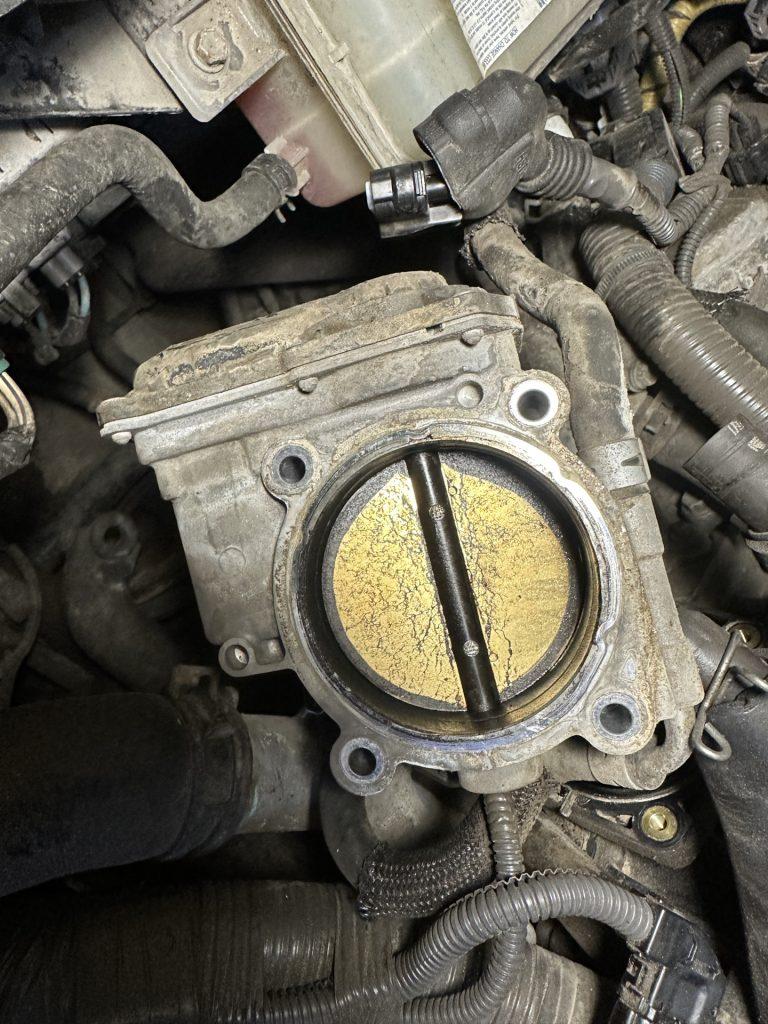

Four bolts of size 10 holding the throttle body are loosened, providing enough clearance. Radiator hoses do not need to be disconnected as they allow cleaning without issues.

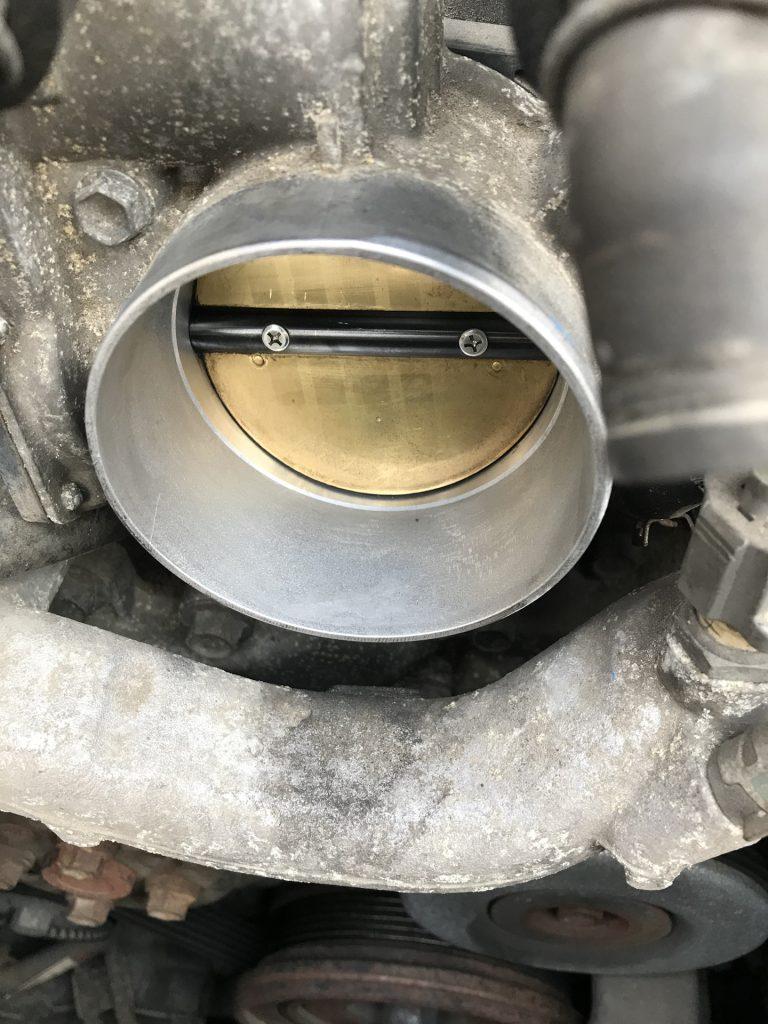

It's better to clean with a carb cleaner (throttle body cleaner) and rags.
