They rattle. As cars age, almost all racks emit noise during movement. To the credit of the manufacturer, the noise (usually) is not critical. It's mainly due to wear in seals, but there can be more serious issues like bearing failure on the rack shaft.

I received this rack as a gift from a good friend last year. From its appearance, it was either completely worn out or fine. Kept as unwanted spare parts. I decided to disassemble and check for repair possibilities. There is no play on the worm gear (which is reassuring), but there is longitudinal movement. Clearly felt oscillation along the rack.

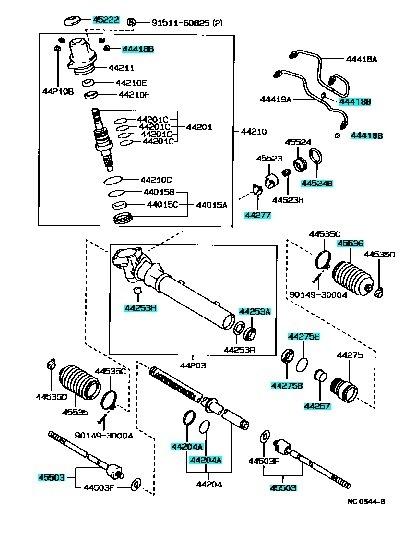

According to schematics

purchase
90310-26008-seal for the helical gear shaft 2 pcs. They lock the hydraulic chamber from both sides. There are PTFE rings on the inner flange.

45516-22011and45517-22031-bushings of the steering rack.h.a.d-cd.net/d91d888s-960.jpg
90301-40004-seal for the hydraulic chamber plug. Appears to be rubber.

44267-22020-bushing, rocker.

90301-37007-rubber damping ring of the helical gear shaft piston

90562-41001-PTFE working ring of the helical gear shaft piston

45503-29305-steering tie rod ends 2 pcs.

45046-29205-steering knuckles 2 pcs.

45503-29305-boot of the steering tie rods

in case of loss - valve/accumulator seals for high-pressure hoses90410-04001

and90410-040022 pcs each.90364-13003 по 2 шт.

90364-13003 — обязательно, a needle bearing for the worm gear, located in the chamber under the worm gear

45222-32010 — worm gear boot.

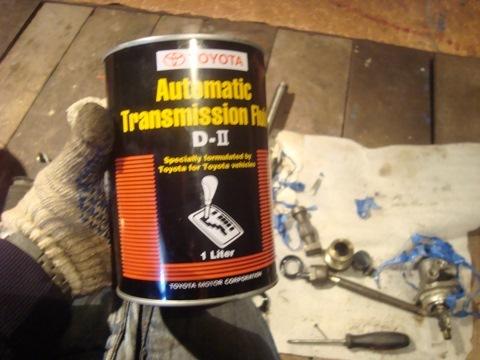

For assembly, you will need a little Dexron for seals and assembly grease. I used a liter of Dexron Type 2 Toyota08886-81006

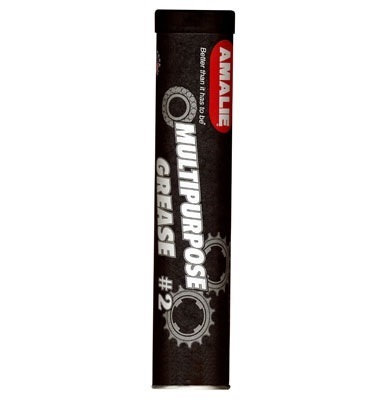

red lithium grease Amalie MP Grease #2

In terms of tools, traditionally, but a large hex key is needed to unscrew the hydraulic chamber plug and a multi-grip wrench for removing the lock nut on the rack position regulator.

To the point

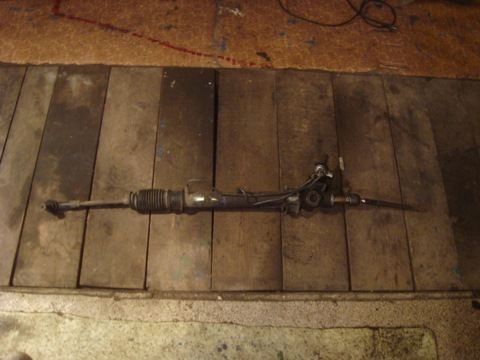

Patient

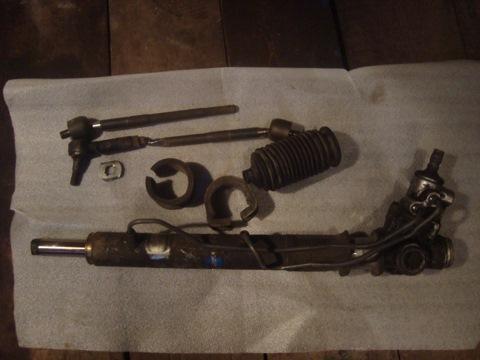

the tie rods, end links, boot, and torn bushings have been removed

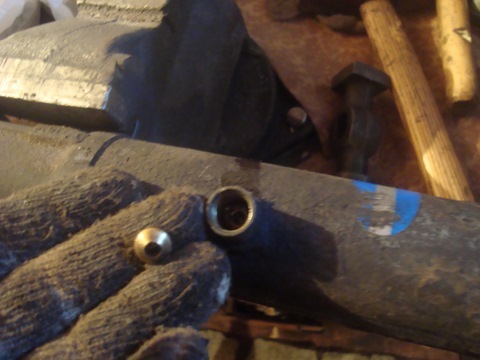

during the crimping of high-pressure tubes pay attention to copper spacers and don't lose them

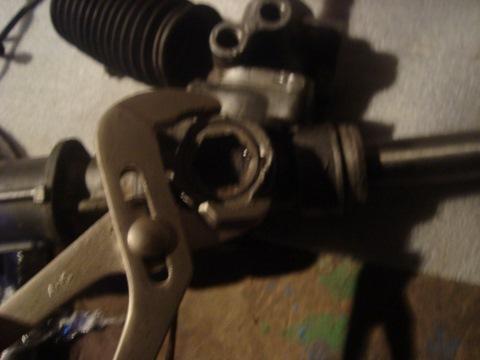

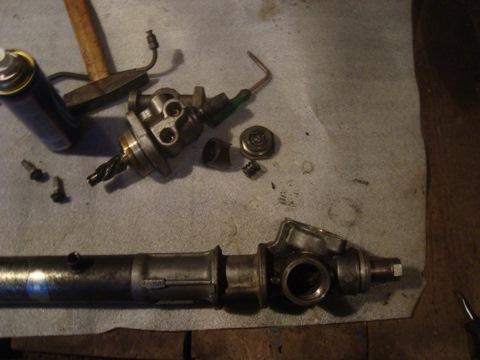

unscrew the lock nut and plug of the regulator carefully watch for a spring which will pop out like magic.

then unscrew the hydraulic chamber plug

followed by unscrewing the worm gear bolts carefully watching the needle bearing, which is bound to disintegrate. No big deal, it's disposable and needs replacing.

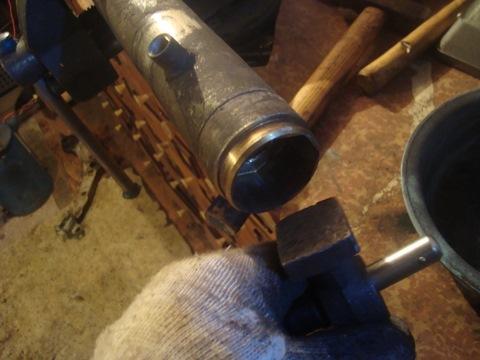

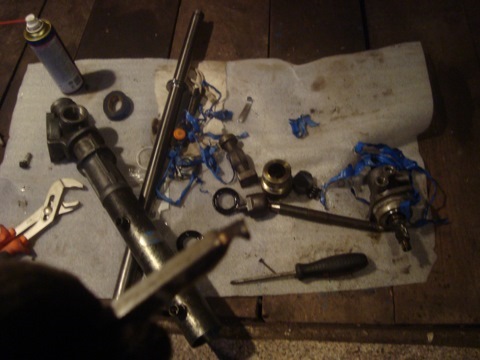

after that remove the rack taking off the outer seal and poking at the inner one. I had this contraption made from a steel rod. Carefully watch for the limit stop washer which will come out along with the seal.

to be continued...
